Tire Changer ME-T530 & Wheel Balancer ME-B610

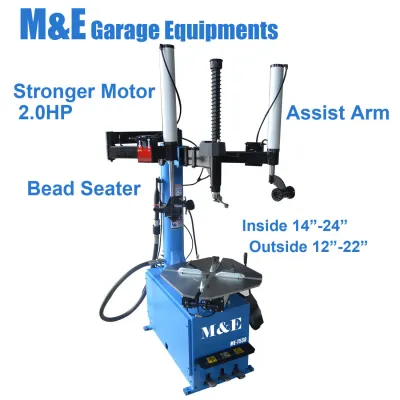

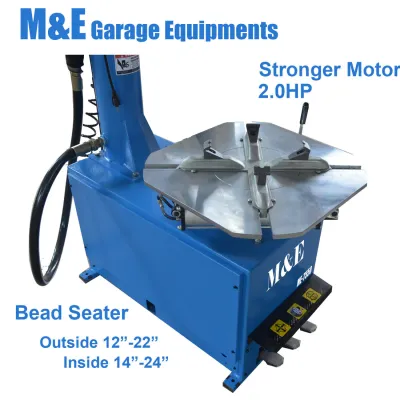

Tire Changer ME-T530:

--Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim.

--The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, and take with plastic cover for protect rim.

-- Inflation gauge with pedal control.

--With high quality spade cover, effective prevent damage rim.

--Pull type pedal control system, convenience for changing and maintenance.

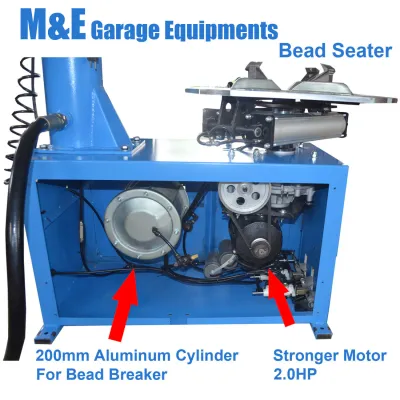

--Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.

--With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system.

--For North America region used 120V/1ph/2.0HP motor, more strong power and high efficiency working.

--Closed body for protect inside parts well.

Max Wheel Diameter :	41"/1040mm
Max Wheel Width :	15"/380mm
Outside Clamp:	12"-22"
Inside Clamp :	14"-24"
Power Supply:	120V 1PH
Motor Power:	2.0HP/1.5KW
Rotation Speed :	6.8r/min
Air Pressure :	0.8-1.0Mpa(116-145psi)
Net weight :	244KG

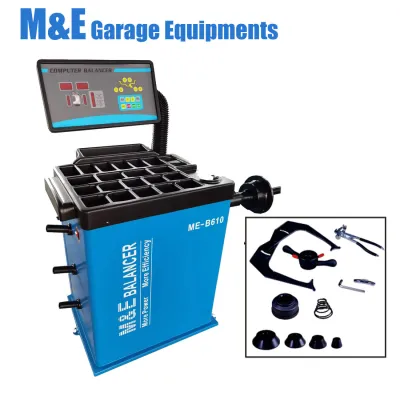

Wheel Balancer ME-B610:

-The body use 3mm thickness steel, high strength, solid welding, few vibration.

-All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision.

-Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life.

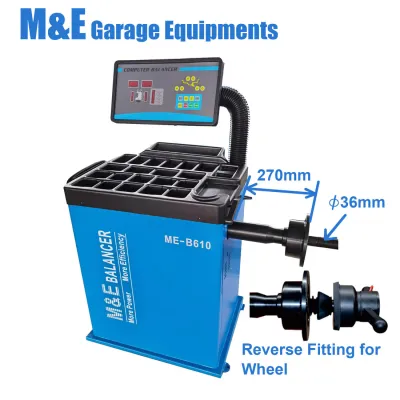

-The φ36mm shaft thread is by quenching treatment, high strength.

-Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.

-The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life.

-Various balance mode, according different rim for different balance mode, make the balance effect more precision.

-Built-in fault diagnosis and self calibration program that double side calibration, No memory parameters, operation more easy.

-Unit selection(Ounce/Gram, MM/Inch).

-High quality integration power board, working stable and reliable.

-Longer shaft for more width wheels

Rim Diameter:	<30"
Wheel Width:	3"-12"
Wheel Diameter:	<880mm
Balancing Speed:	180rpm
Power Supply:	120V 1PH
Motor Power:	0.25KW
Rim Center Hole Dia.:	<135mm
Wheel Weight:	<65KG
Balancing Accuracy:	±1g
Measuring Time:	7S
